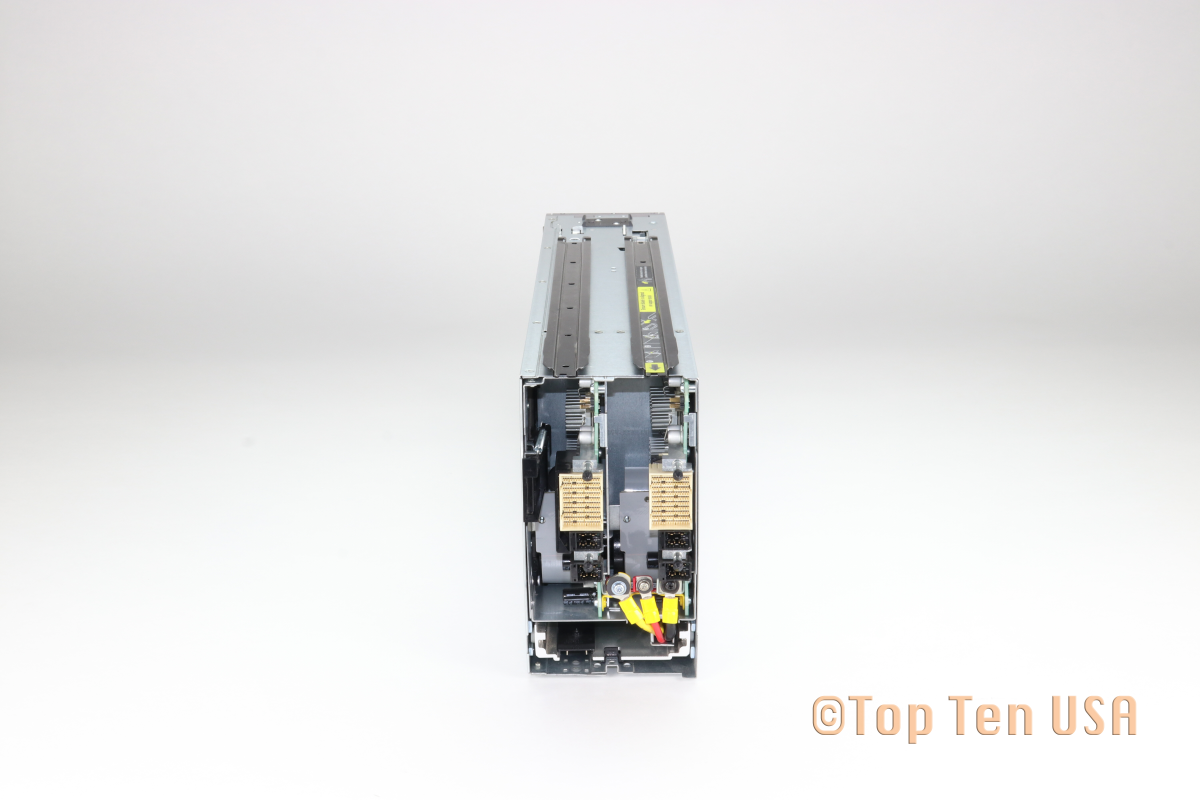

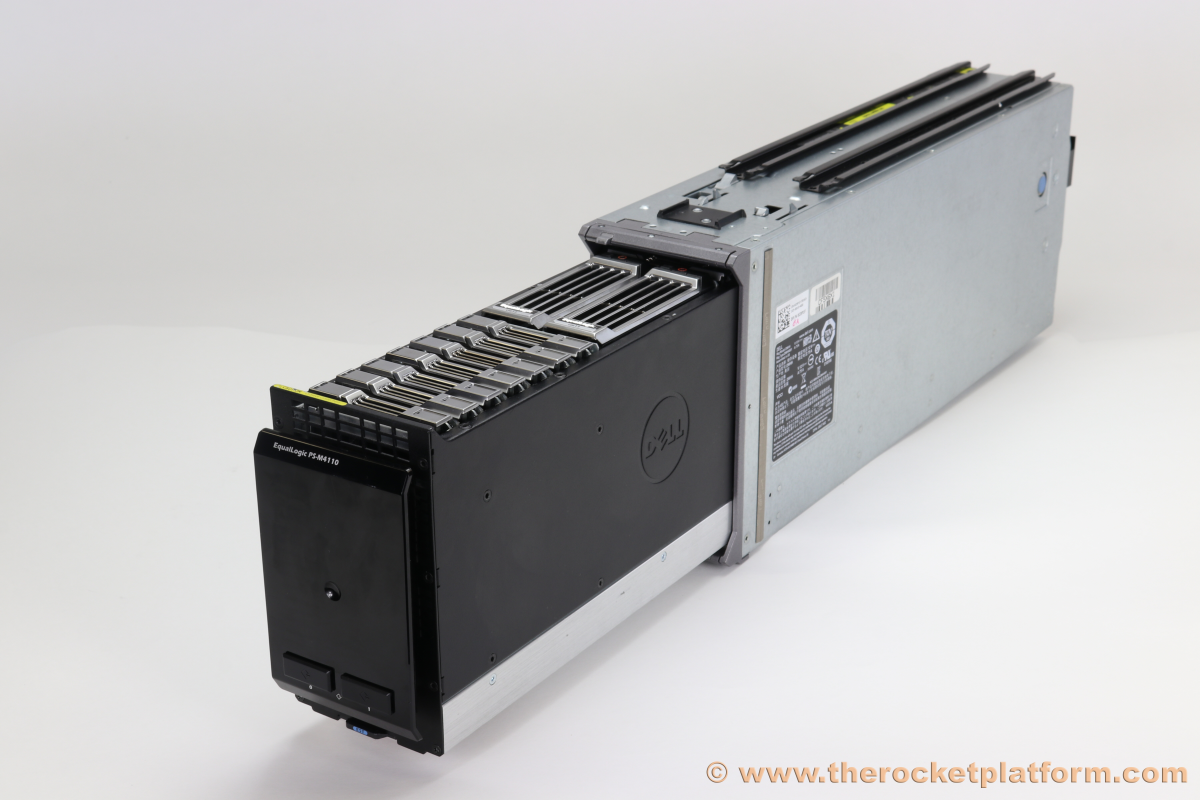

420-1204 - Dell EqualLogic PS-M4110X Qty 14 1.2TB 10K SAS Blade Module
PS-M4110X Qty 14 1.2TB 10K SAS Blade Module with Type 13 Control Module
$7,100.00
Specifications
Technology Type
Disk Storage
OEM
Dell
Product Line
EqualLogic
Machine Model
PS-M4110
Part Type
Pre-configured System
Array Model
PS-M4110X
Controller Type
Type 13
Drive Type
1.2 TB 10k SAS 2.5"
Drive Quantity
14
System Capacity
16.8TB
Volumes
Up to 256
Snapshots
512 per volume / up to 10,000 total per group
Hosts Accessing Group
Up to 1,024 per pool / 4,096 per group
Host Interface
Any standards-compliant iSCSI initiator
RAID Options
RAID 5, RAID 6, RAID 10, and RAID 50 RAID 6 Accelerated
Memory (Battery Backed)
4GB
Number/Type of Interfaces
Redundant 10Gb connections available through Fabric A or B
Operating systems supported
Windows® 2000 Server, Windows Server® 2003, Windows Server® 2008, including Hyper-V™, Windows Vista®, Windows Server® 2008 R2 including Hyper-V™, Windows XP®, Red Hat® Enterprise Linux®, SUSE® Linux® Enterprise, Sun™ Solaris™, IBM® AIX®, HP-UX, Mac OS® X, VMware® ESX Server 3/3.5/4/4.1/5, ESXi 3.5/4/4.1/5, Citrix® XenServer™, Novell® NetWare®
Expansion options
Can be combined with other PS systems in a PS Storage Stack with matching FW
Reliability
Enclosure Monitoring
Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces
Dell Chassis Management Console (CMC) integration
Dell Storage Manager (DSM): Allows you to perform day-to-day tasks across SC and PS Series arrays from a single management interface
PS Series Group Manager
PS Series SAN Headquarters multigroup performance and event monitoring tool
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, web (SSL), host scripting
Multiadministrator support
SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Multi-administrator support
Security
CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support
Notification Methods
SNMP traps, e-mail, syslog
Input Voltage
PowerEdge M1000E
Input Frequency
Dell Networking MXL 10/40GbE blade switch, PowerConnect M8024-k, M8428-k and 10Gb Ethernet Pass-Through-k modules with external switches
Power Supplies
Supplied by Dell PowerEdge M1000e blade enclosure
Power Consumption
450W
Tempreature Range
12VDC
Storage Tempreature
261.0W
Altitude
Relative Humidity
Thermal Output
Shock
Vibration
Acoustics
Height
189 mm (7.44 inches)
Width
102 mm (4.015 inches)
Depth
515 mm (20.275 inches)
Weight
28.38 lb (12.87 kg)
Alternative Part Numbers
No Known Substitute Part Numbers
Expert Installation Videos for this Product
MS-M4110 Pre-Configured System Installation
