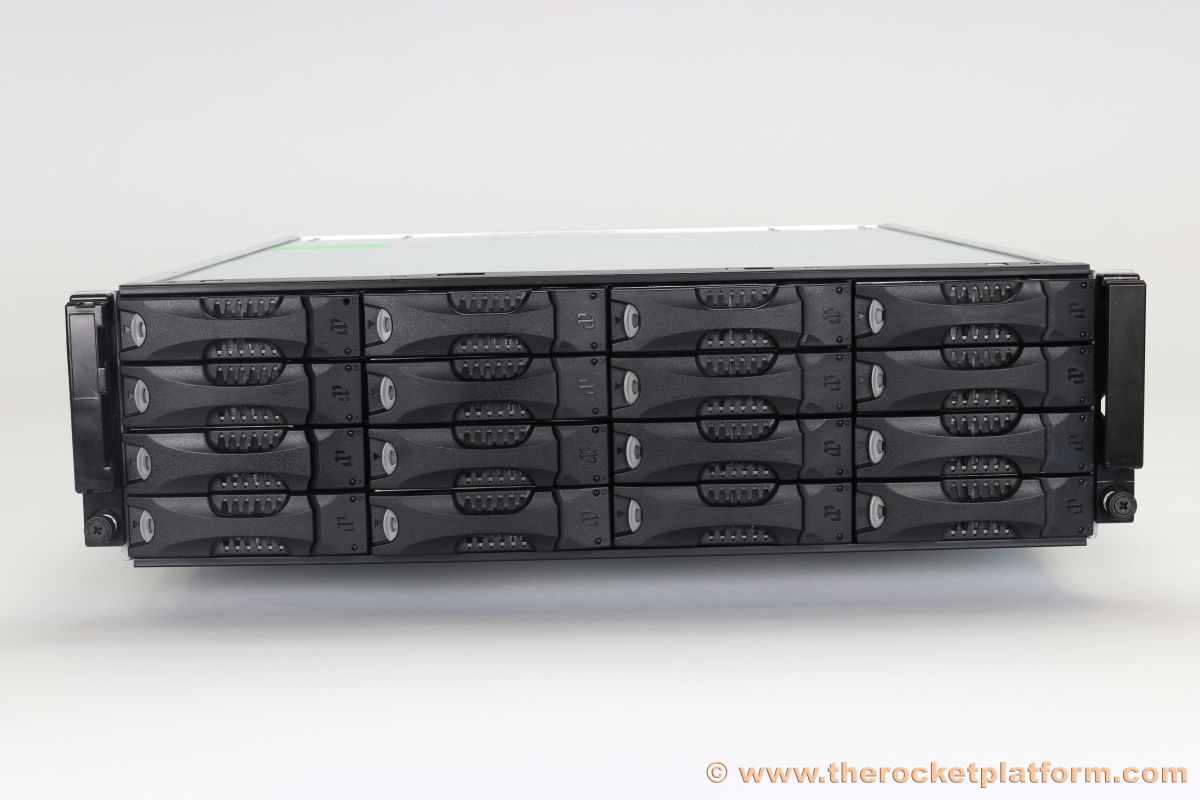

610-1726 - Dell EqualLogic PS6010E Qty 16 1TB 7.2K SATA in 3U Chassis
PS6010E Qty 16 1TB 7.2K SATA in 3U Chassis with Type 10 Control Module, Includes Rack Mount Kit and Power Cables
$2,015.00
Specifications
Technology Type
Disk Storage
OEM
Dell
Product Line
EqualLogic
Machine Model
PS6010
Part Type
Pre-configured System
Array Model
PS6010E
Controller Type
Type 10
Drive Type
1TB 7.2K SATA 3.5"
Drive Quantity
16
System Capacity
16 TB
Volumes
Up to 1024
Snapshots
512 per volume / up to 10,000 total per group
Hosts Accessing Group
Up to 1,024 per pool / 4,096 per group
Host Interface
Any standards-compliant iSCSI initiator
RAID Options
RAID 5, RAID 6, RAID 10, and RAID 50 RAID 6 Accelerated
Memory (Battery Backed)
4GB
Number/Type of Interfaces
Two (2) SFP+ per controller, One (1) 10/100 copper (optional management network only) per controller
Operating systems supported
Windows® 2000 Server, Windows Server® 2003, Windows Server® 2008, including Hyper-V™, Windows Vista®, Windows Server® 2008 R2 including Hyper-V™, Windows XP®, Red Hat® Enterprise Linux®, SUSE® Linux® Enterprise, Sun™ Solaris™, IBM® AIX®, HP-UX, Mac OS® X, VMware® ESX Server 3 / 3.5 / 4 / 4.1, ESXi 3.5 / 4 / 4.1, Citrix® XenServer™, Novell® NetWare®
Expansion options
Can be combined with other PS systems in a PS Storage Stack with matching FW
Reliability
redundant, hot-swappable controllers; power supplies / cooling fans, and hot-swappable disks
Enclosure Monitoring
Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces
SAN Headquarters multi-group performance and event monitoring tool
Serial console
Ability to configure a separate management network SNMP, telnet, SSH, HTTP, Web (SSL),
host scripting
Multi-administrator support
Security
CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support
Notification Methods
SNMP traps, e-mail, syslog
Input Voltage
100-240 VAC ±10% single phase
Input Frequency
47-63 Hz
Power Supplies
Dual 440W dc
Power Consumption
335 VA, 380 Peak VA (operating maximum),
Tempreature Range
5 to 35°C / 41 to 95°F
Storage Tempreature
-20 to 60°C / -22 to 140°F
Altitude
70 to 3,048 m operational / -305 to 12,192 m non-operational
Relative Humidity
20 to 80% non-condensing operational / 5 to 95% non-condensing non-operational
Thermal Output
1,550 BTU per hour
Shock
5 g 10 ms ½ sine operational / 30 g 10 ms ½ sine non-operational
Vibration
Random .21 grms @ 5-500Hz operational / Random 1.04 grms 2-200Hz non-operational
Acoustics
Sound Power Operating: <5.8 db LpA @ 20°C
Height
13 cm / 5.12 in / 3 EIA units
Width
48.26 cm / 19.0 in / 1EC Rack Compliant
Depth
55.1 cm / 21.7 in
Weight
36 kg / 79.6 lb
Alternative Part Numbers
No Known Substitute Part Numbers
